Neken Radical Design handlebar 28.6 mm, bend 182 (K-BAR, OEM KTM)
SKU: R00182C-BKY
Replaces part numbers: 06013790, 0601-3790
Colour
Bend chart▾
Neken Radical Design handlebar bends
| Bend | Width | Height | Sweep | Overall height | Note |
|---|---|---|---|---|---|
| 133 | 820 mm | 80 mm | 54 mm | 110 mm | low |
| 182 — this bar | 817 mm | 82 mm | 52 mm | 112 mm | K-BAR — stock KTM shape |
| 172 | 814 mm | 85 mm | 56 mm | 112 mm | stock Suzuki RM-Z shape |
| 101 | 820 mm | 90 mm | 54 mm | 118 mm | stock Yamaha YZ-F shape, medium |
| CR High | 810 mm | 98 mm | 56 mm | 125 mm | higher |
| 121 | 815 mm | 105 mm | 52 mm | 132 mm | high |
Height and sweep are measured the same way as on Renthal and Pro Taper bars, so they can be compared. Overall height includes the tube thickness.
Stock KTM EXC 2016–2019 handlebar: width 803 mm, height 85 mm, sweep 54 mm.
Dimensions as stated by Neken.
Price incl. VAT (23%)
Shipping from €3.90
to a pickup point
30-day returns
no questions
24-month warranty
on all parts

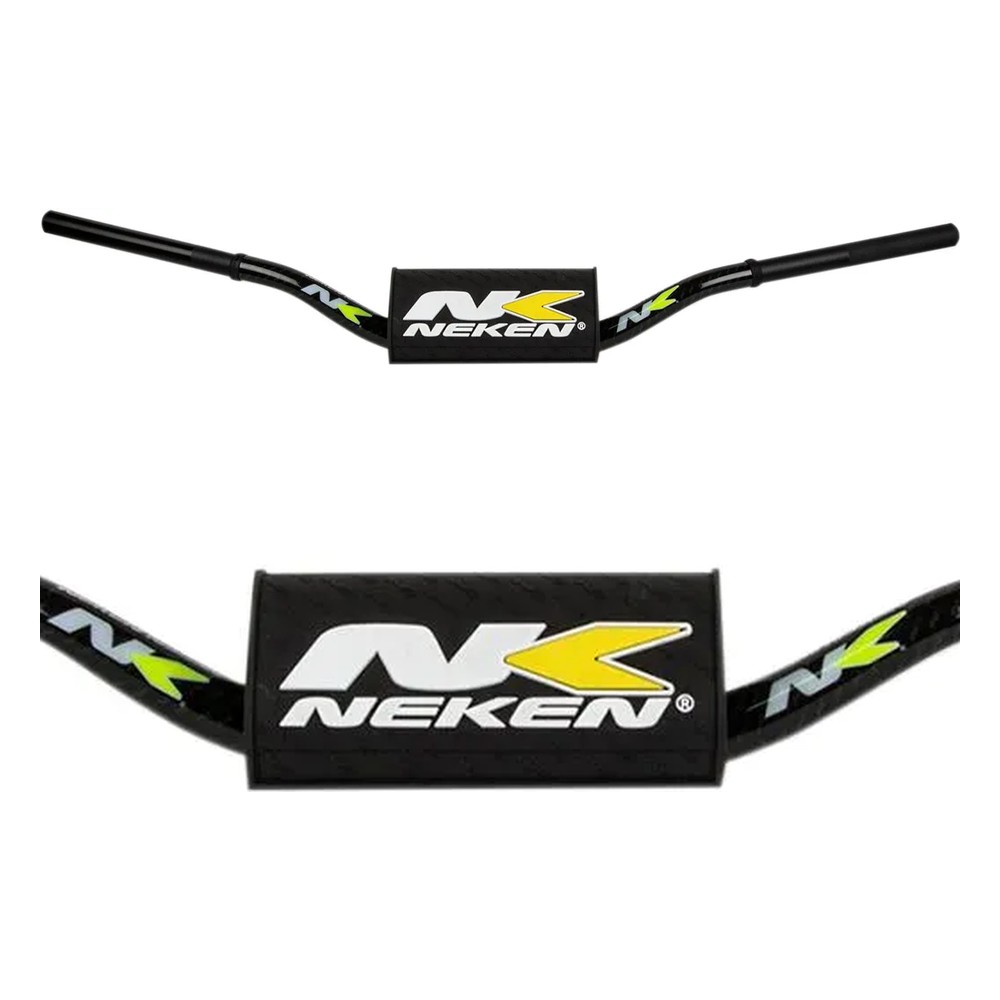

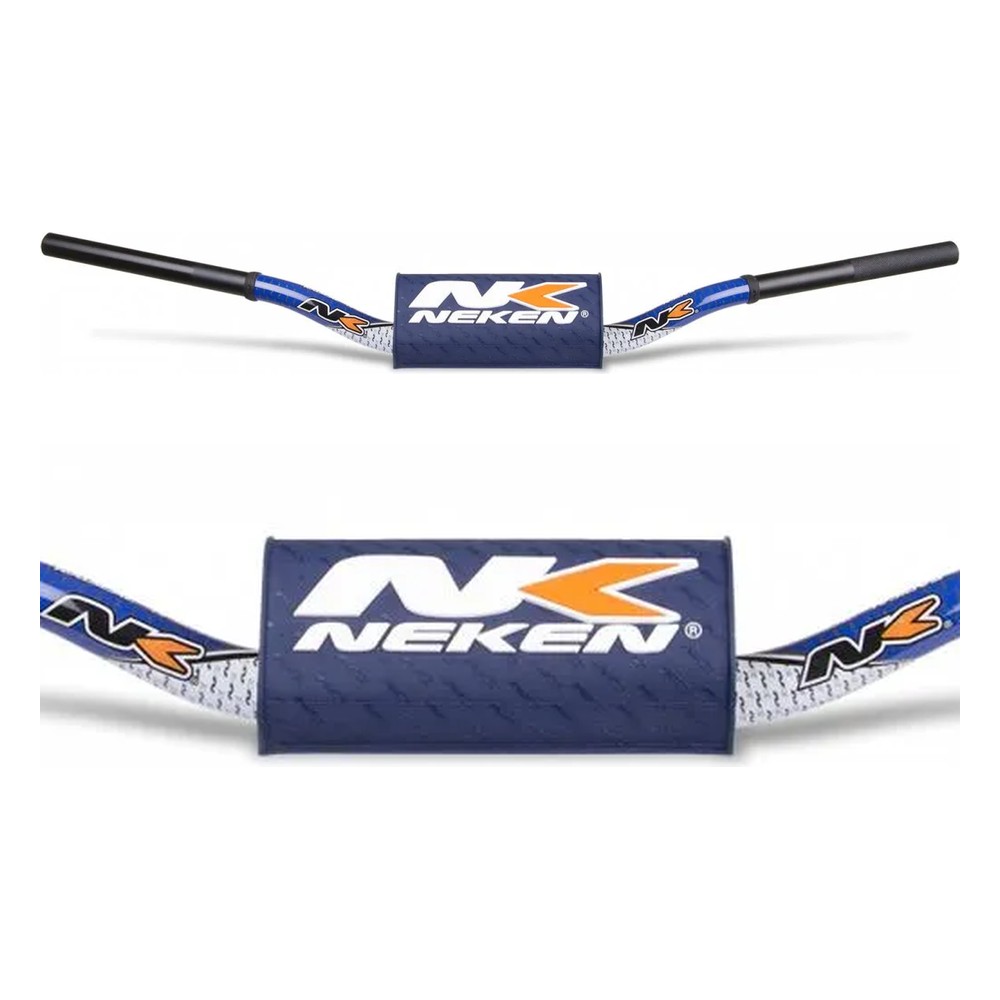

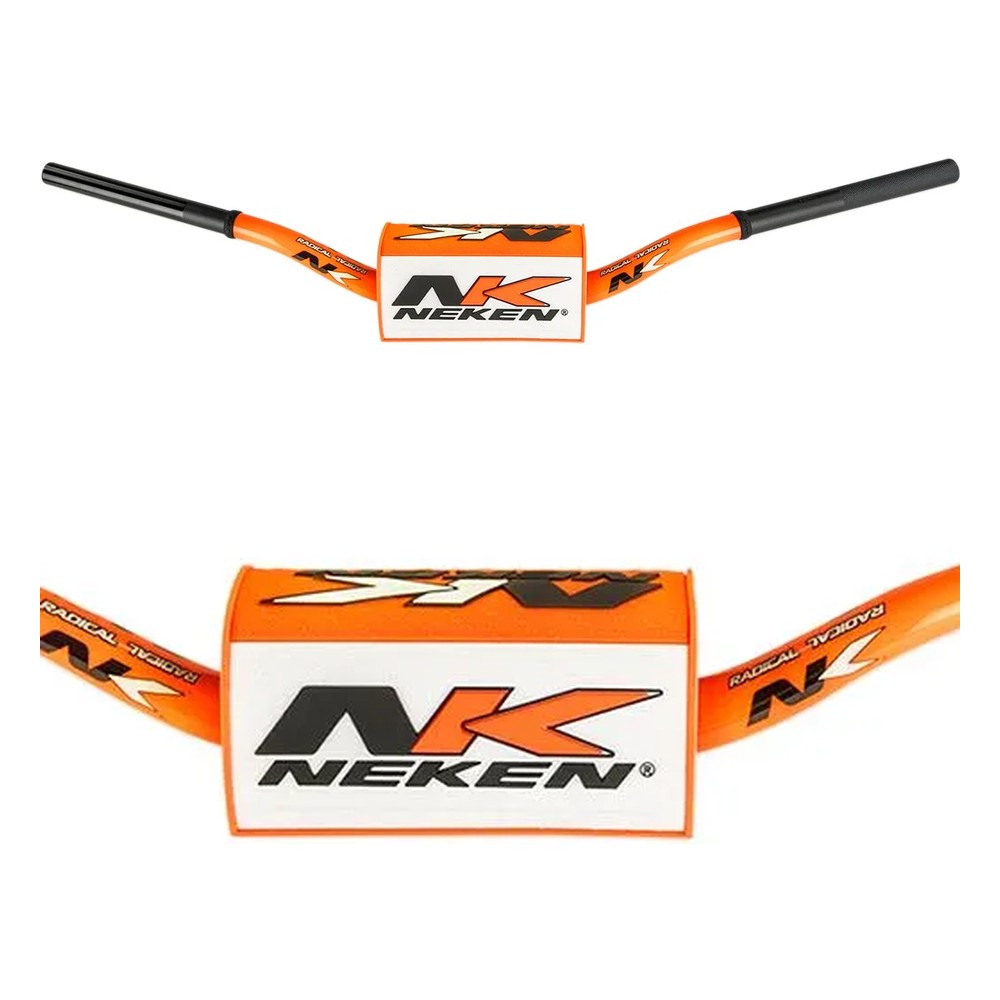

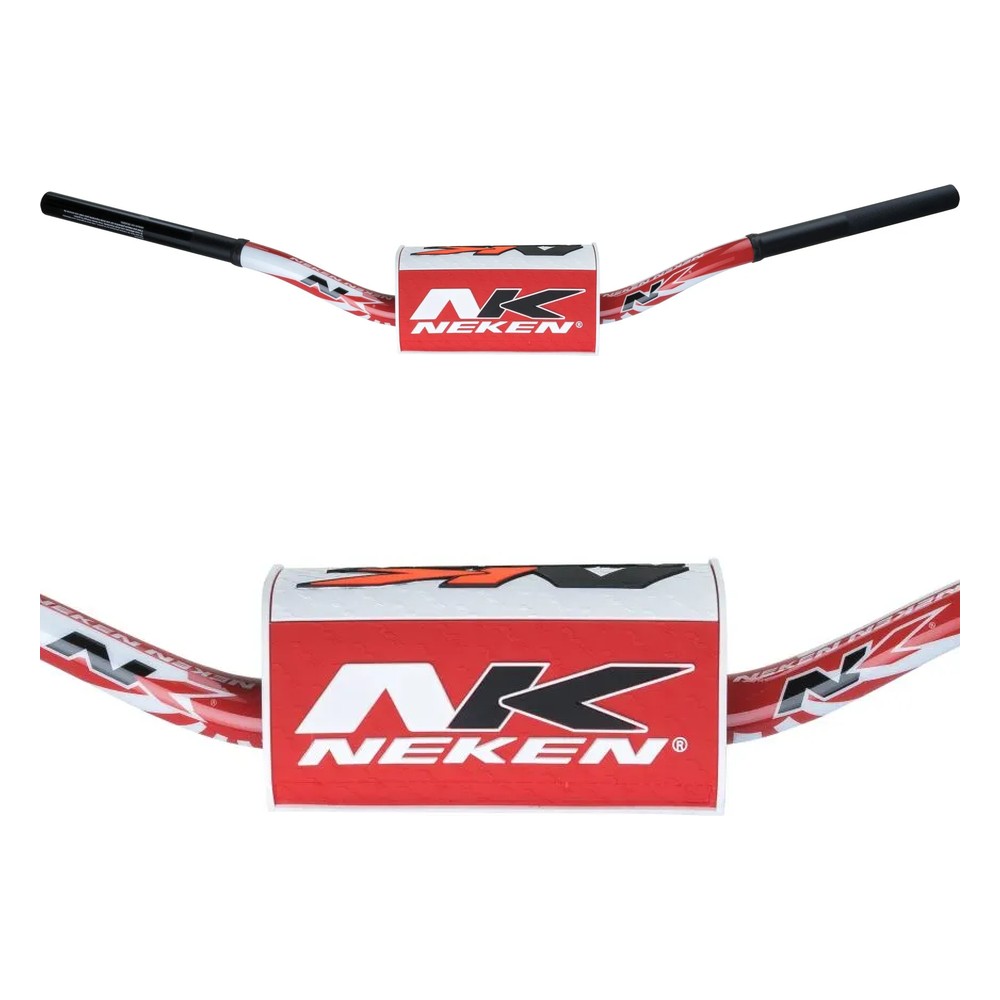

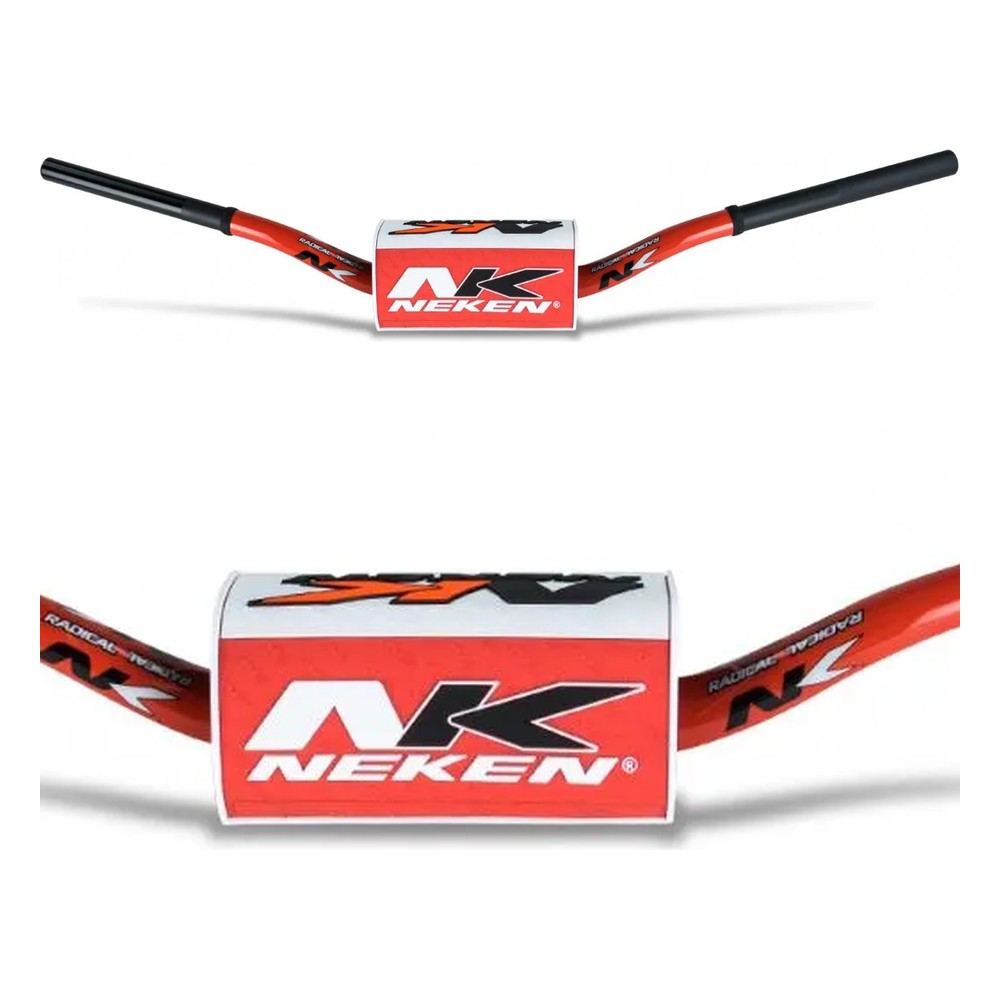

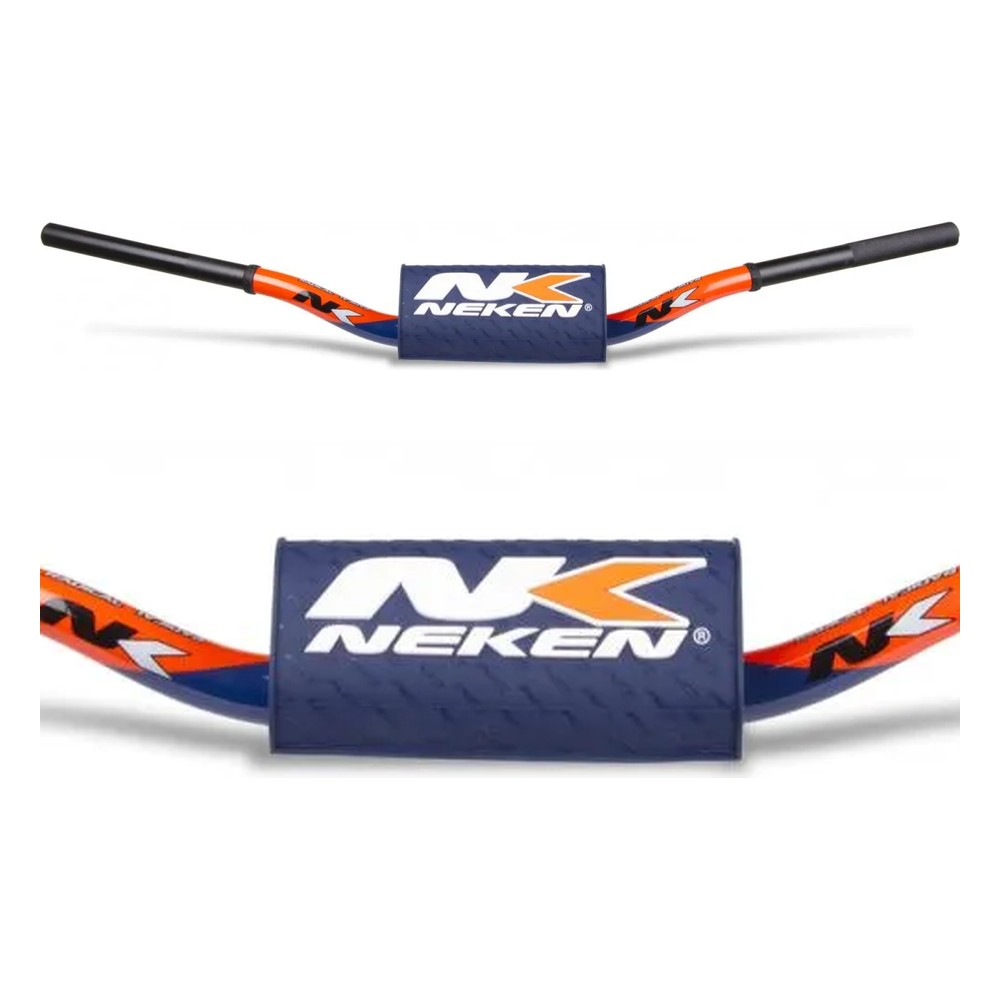

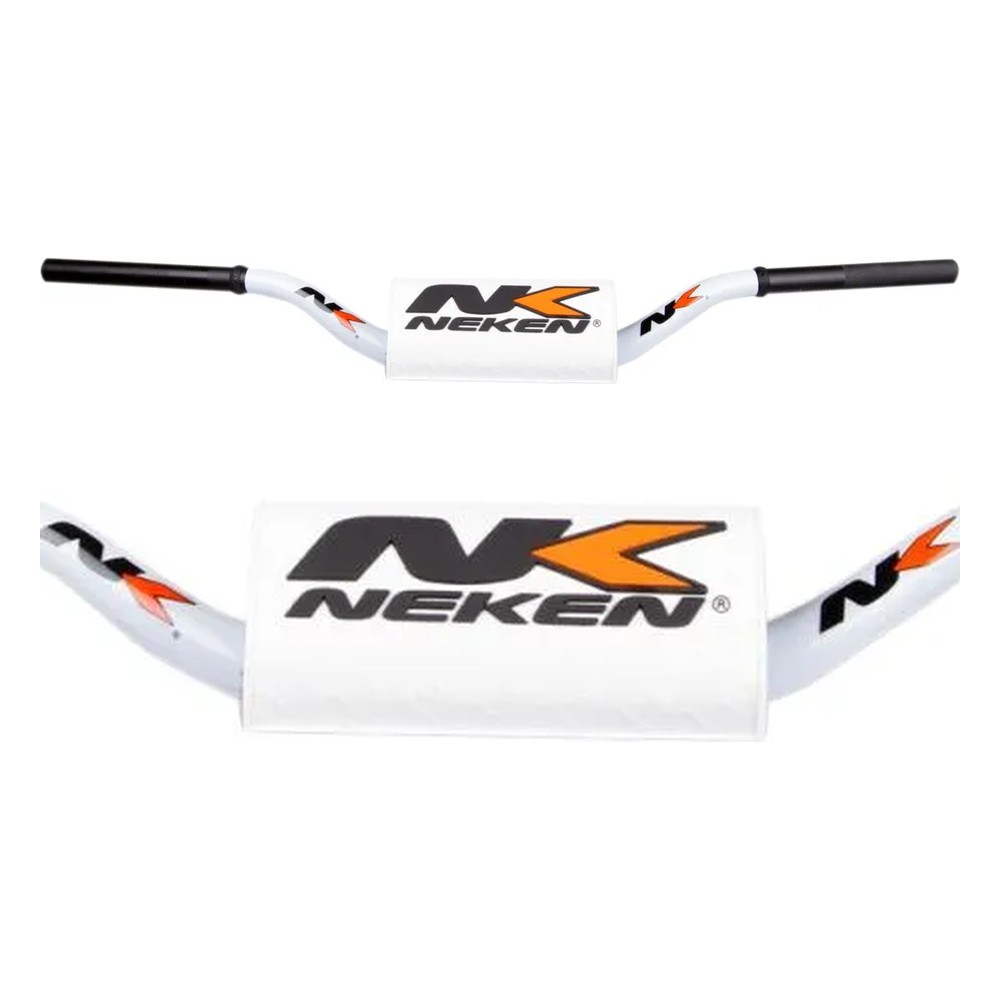

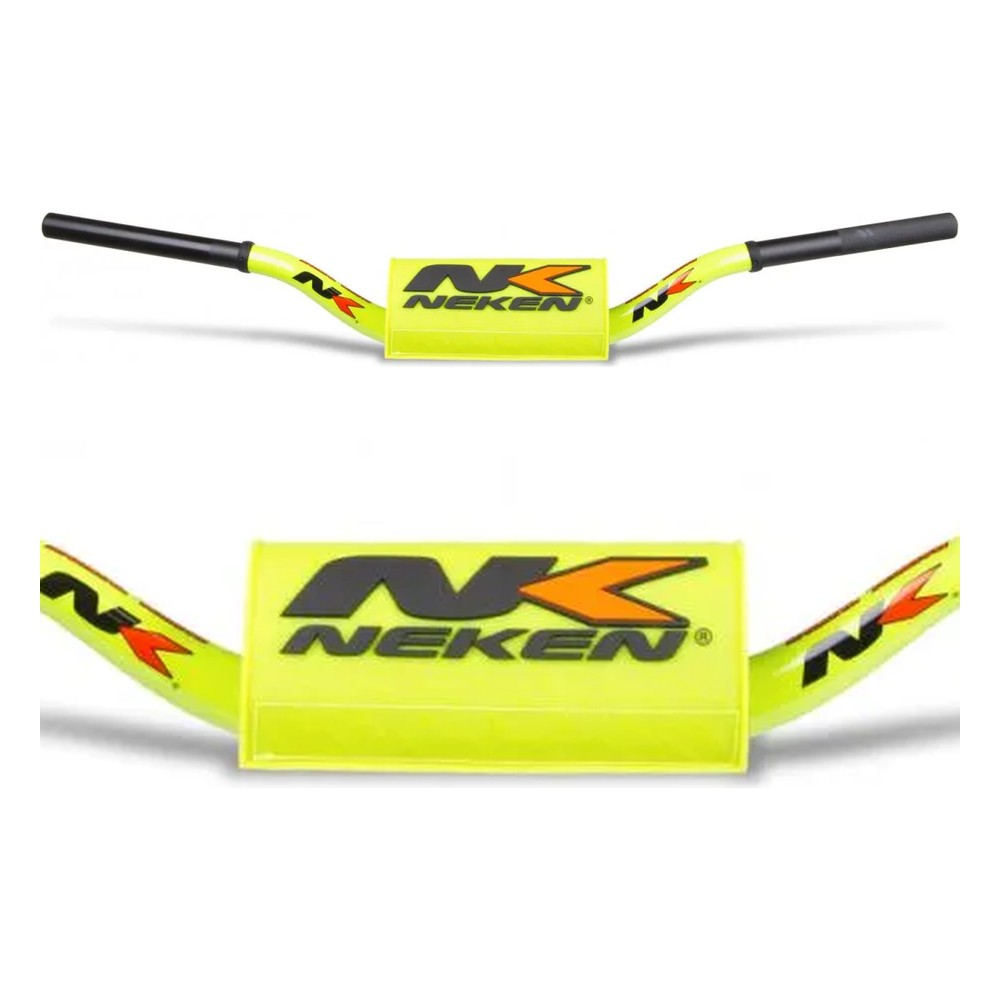

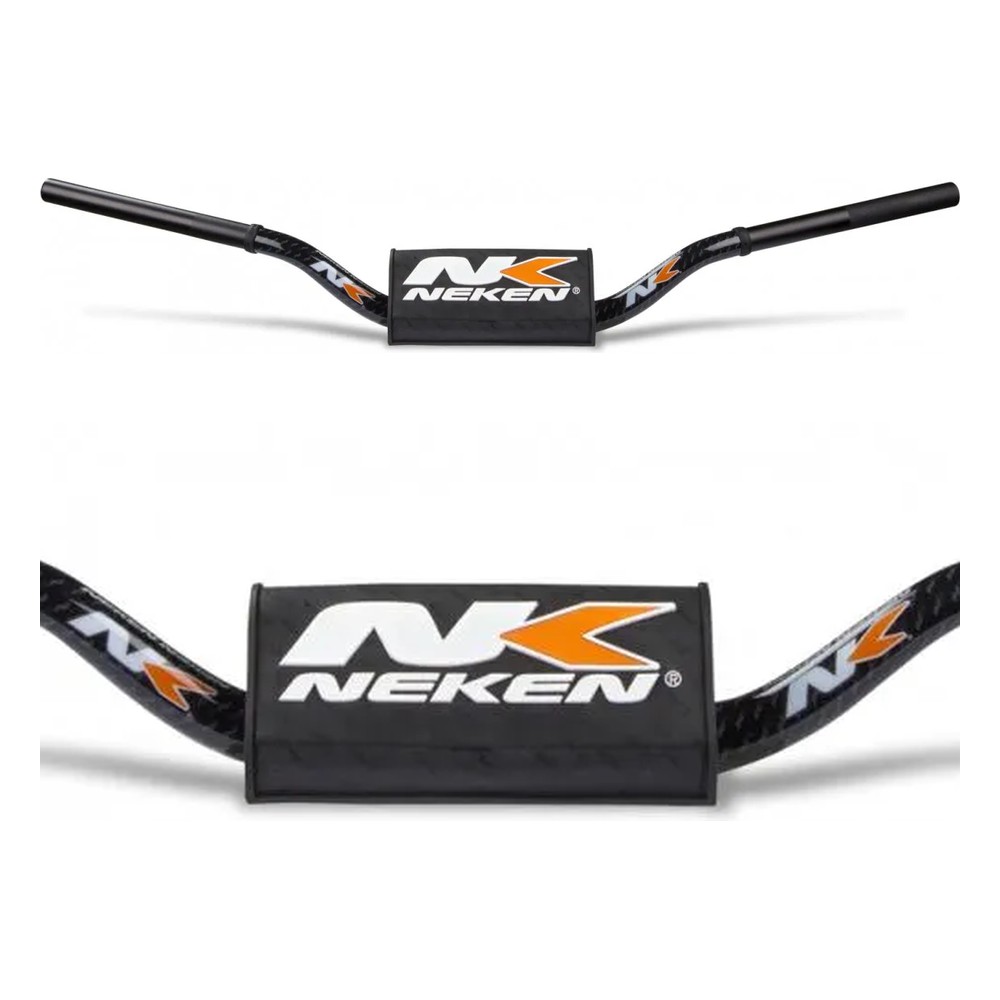

Neken Radical Design tapered aluminium handlebar, 28.6 mm at the clamp and 22 mm at the grips, bend 182 (K-BAR, OEM KTM). Width 817 mm, height 82 mm (overall 112 mm), sweep 52 mm. The K-BAR bend matches the shape of the stock KTM handlebar. Made of 7010-T6 alloy with variable wall thickness, according to the manufacturer 40% lighter and stronger than a classic bar. Knurled clutch side to stop the grip from turning and laser marks for centring. Bar pad included. Fits any bike with 28.6 mm clamps. Choose the colour below — the price is the same for all.
